Ball valves are an essential component in various industrial and commercial applications, providing reliable and efficient flow control. These valves are widely used across multiple industries due to their durability, ease of operation, and tight sealing capabilities. In this guide, we will explore what ball valves are, their common use cases, main types, connection types, standard materials, and their advantages over other valve types.

What is a Ball Valve?

A ball valve is a type of quarter-turn valve that uses a rotating ball with a bore (hole) through its center to control fluid flow. When the ball's bore is aligned with the flow path, the valve is open, allowing fluid to pass. When rotated 90 degrees, the bore is perpendicular to the flow, stopping the fluid. This simple yet effective mechanism makes ball valves highly reliable for on/off and throttling applications.

Main Types of Ball Valves

Ball valves come in various types, each designed for specific applications. The most common types include:

1. Full Port Ball Valves

• Feature a bore size equal to the pipe diameter, minimizing pressure drop and allowing unrestricted flow.

• Ideal for applications requiring maximum flow capacity.

2. Standard Port Ball Valves

• Have a smaller bore than full port valves, causing some flow restriction.

• Suitable for general industrial and residential applications.

3. V-Port Ball Valves

• Designed with a V-shaped ball or seat, allowing for precise flow control and throttling.

• Commonly used in applications requiring variable flow regulation.

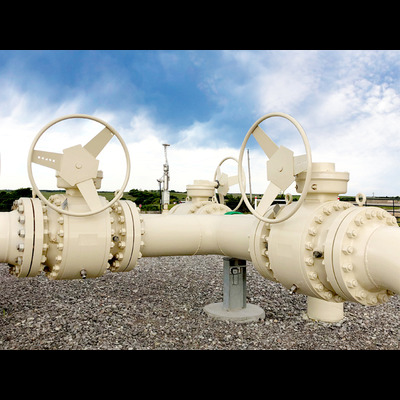

4. Trunnion Ball Valves

• Feature a supported ball design, making them ideal for high-pressure applications.

• Used in oil, gas, and heavy-duty industrial applications.

5. Floating Ball Valves

• The ball is not fixed but floats slightly, pressing against the downstream seat to create a tight seal.

• Common in low to medium pressure applications.

6. Three-Way and Four-Way Ball Valves

• Allow for multiple flow paths by using a T- or L-port configuration.

• Used in mixing, diverting, and switching applications.

Common Connection Types of Ball Valves

Ball valves are available in different connection types to suit various installation needs. The most common types include:

1. Threaded (Screwed) Connection

• Uses internal or external threads to connect to the pipeline.

• Common in residential plumbing and small-scale industrial applications.

2. Flanged Connection

• Features flanges that are bolted together for secure and easy installation.

• Ideal for large-scale industrial applications requiring frequent maintenance.

3. Welded Connection

• The valve is directly welded to the pipeline, providing a permanent and leak-proof connection.

• Used in high-pressure and high-temperature applications.

4. Socket and Butt Weld Connection

• Provides a strong and durable connection through welding methods.

• Commonly used in critical applications like power plants and petrochemical industries.

5. Compression Fitting Connection

• Uses ferrules or compression fittings to create a secure seal without welding or threading.

• Popular in gas and fluid control systems where quick installation is needed.

Common Use Cases Across Industries

Ball valves are used in a wide range of industries due to their versatility. Some common applications include:

1. Oil and Gas Industry

• Used in pipelines and refining processes for their ability to handle high pressure and temperature conditions.

• Employed in safety shutoff systems due to their quick response time.

2. Water and Wastewater Treatment

• Essential for controlling water flow in municipal and industrial treatment plants.

• Resistant to corrosion, making them ideal for handling chemicals and wastewater.

3. Chemical and Pharmaceutical Industry

• Used in the transportation and processing of chemicals due to their resistance to corrosion and leakage.

• Helps maintain sterile conditions in pharmaceutical manufacturing.

4. HVAC and Plumbing Systems

• Commonly found in heating, ventilation, and air conditioning systems.

• Used in residential and commercial plumbing for shutoff and regulation of water supply.

5. Food and Beverage Industry

• Utilized in food processing systems where hygiene and sanitary conditions are critical.

• Made from food-grade stainless steel to prevent contamination.

Standard Materials Used in Ball Valves

Ball valves are available in various materials, each suited for specific applications. The most common materials include:

1. Stainless Steel

• Corrosion-resistant and ideal for high-pressure and high-temperature applications.

• Commonly used in chemical, food, and pharmaceutical industries.

2. Brass

• Cost-effective and durable for low to moderate pressure applications.

• Commonly used in residential plumbing and HVAC systems.

3. PVC (Polyvinyl Chloride)

• Lightweight and resistant to chemicals, making it ideal for water and wastewater applications.

• Common in irrigation systems and low-pressure applications.

4. Carbon Steel

• Offers high strength and durability, suitable for industrial and heavy-duty applications.

• Used in oil, gas, and power generation industries.

Advantages of Ball Valves Over Other Valve Types

Ball valves offer several advantages over other common valve types, such as gate valves and butterfly valves. These include:

1. Fast Operation

• Requires only a quarter-turn to open or close, providing quick shutoff capabilities.

2. Leak-Tight Seal

• Offers excellent sealing performance, reducing the risk of leaks compared to gate or globe valves.

3. Durability and Longevity

• Resistant to wear and tear, ensuring a longer lifespan with minimal maintenance.

4. Versatility

• Available in a wide range of materials and configurations, suitable for various industries.

5. Minimal Pressure Drop

• The full-bore design allows unrestricted flow, reducing pressure loss in the system.

Conclusion

Ball valves are a crucial component in many industries, offering exceptional durability, efficiency, and reliability. Their versatility in material choices and ability to provide a leak-tight seal make them a preferred choice over other valve types. Whether used in oil and gas, water treatment, or food processing, ball valves continue to be an indispensable solution for flow control needs.
